1Panel Running CatWrt Bypass Gateway Docker Version OpenWrt

#CatWrt#Openwrt#软路由#1Panel#Docker293
AI Translation
This post is translated from Chinese into English through AI.View Original
AI-generated summary
This document provides a guide for installing CatWrt on a Debian system using 1Panel and Docker. It begins by noting that the CatWrt root filesystem has been uploaded to Docker Hub for easier access. The author recommends using Docker Compose for configuration, which can be done even without 1Panel. The setup involves enabling promiscuous mode on the network interface (ens18) and creating a Docker network with specific subnet and gateway settings. The document includes commands for checking network configurations and creating the Docker network. Next, it outlines the steps for orchestrating the CatWrt container, including the necessary configuration file for Docker Compose. The author emphasizes ensuring the TUN module is loaded and provides commands to check its status. Finally, it describes how to connect to the CatWrt terminal and use Cattools to configure the network settings, noting that the container may not connect to the internet initially, which could lead to repeated attempts to download the latest version of Cattools. The user is instructed to set the IP address within the Cattools interface.

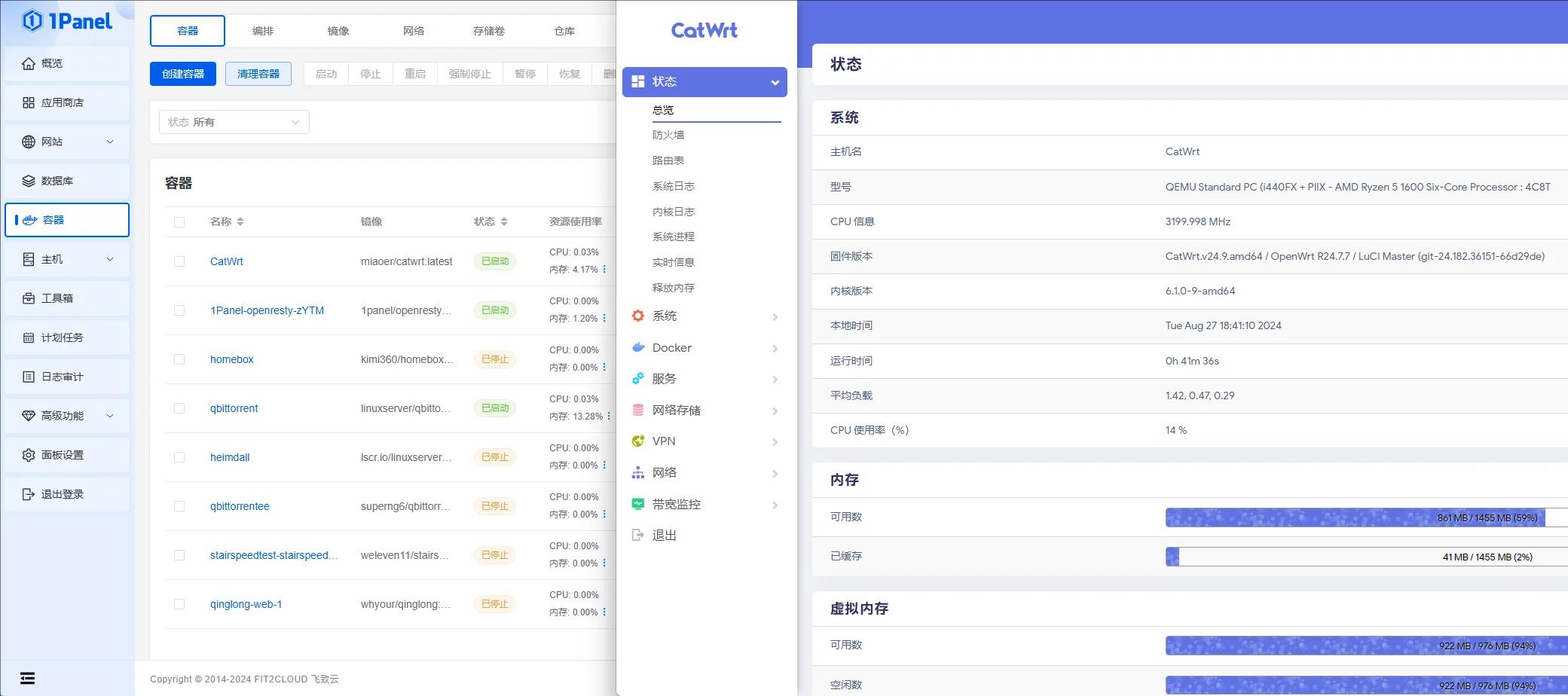

Running CatWrt bypass gateway in 1Panel, here Debian has been installed with 1Panel, the host machine is a virtual Debian on PVE, today I will briefly introduce the installation method of CatWrt-rootfs.

Yesterday I uploaded the rootfs files to Docker Hub, so everyone can directly pull the image in the future, which is quite convenient. There is no need to download this rootfs version of CatWrt from cloud storage or GitHub anymore; I will just provide a method for installing this rootfs.

It is recommended to use our docker-compose to configure CatWrt. If you do not have 1Panel, it can still be used; tools like Baota do not even require a panel.


root@Debian:~# neofetch
       _,met$$$$$gg.          root@Debian
    ,g$$$$$$$$$$$$$$$P.       -----------
  ,g$$P"     """Y$$.".        OS: Debian GNU/Linux 12 (bookworm) x86_64
 ,$$P'              `$$$.     Host: KVM/QEMU (Standard PC (i440FX + PIIX, 1996) pc-i440fx-9.0)
',$$P       ,ggs.     `$$b:   Kernel: 6.1.0-9-amd64
`d$$'     ,$P"'   .    $$$    Uptime: 42 mins
 $$P      d$'     ,    $$P    Packages: 711 (dpkg)
 $$:      $$.   -    ,d$$'    Shell: bash 5.2.15
 $$;      Y$b._   _,d$P'      Resolution: 1280x800
 Y$$.    `.`"Y$$$$P"'         Terminal: /dev/pts/0
 `$$b      "-.__              CPU: AMD Ryzen 5 1600 (8) @ 3.199GHz
  `Y$$                        GPU: 00:02.0 Vendor 1234 Device 1111
   `Y$$.                      Memory: 507MiB / 1482MiB
     `$$b.
       `Y$$b.
          `"Y$b._
              `"""

Promiscuous Mode for Network Card#

First, you need to enable promiscuous mode on the network card in Debian; my network card here is ens18.

root@Debian:~# ip addr
2: ens18: <BROADCAST,MULTICAST,PROMISC,UP,LOWER_UP> mtu 1500 qdisc fq_codel state UP group default qlen 1000
    link/ether 92:64:15:a8:91:63 brd ff:ff:ff:ff:ff:ff
    altname enp0s18
    inet 10.0.0.1/24 brd 10.0.0.255 scope global ens18
       valid_lft forever preferred_lft forever
    inet6 fd61:e296:244b:0:9064:15ff:fea8:9163/64 scope global dynamic mngtmpaddr
       valid_lft forever preferred_lft forever
    inet6 2408:8256:c84:9a4c:XXXX:XXXX::1/64 scope global dynamic mngtmpaddr
       valid_lft 189872sec preferred_lft 103472sec
    inet6 fe80::9064:15ff:fea8:9163/64 scope link
       valid_lft forever preferred_lft forever

Set the ens18 network card to promiscuous mode to allow the container to directly access the local area network.

sudo ip link set ens18 promisc on

Create Network Card#

Here, create a network card with subnet=10.0.0.0/24 and gateway=10.0.0.4, which needs to be configured according to your own network environment.

  • If your subnet is 192.168.1.4, then the corresponding subnet=192.168.1.0/24 subnet mask.

  • gateway=10.0.0.4 is your main router address, set as the gateway.

docker network create -d macvlan --subnet=10.0.0.0/24 --gateway=10.0.0.4 -o parent=enp0s18 maclan

After setting, check if it is configured correctly with docker network ls.

root@Debian:~# docker network ls
NETWORK ID     NAME                                      DRIVER    SCOPE
d9dd5df71c88   1panel-network                            bridge    local
70a316d0b976   host                                      host      local
779d06aebc6f   maclan                                    macvlan   local

Orchestration#

In the 1Panel container - Orchestration - Create Orchestration.

Fill in the folder as CatWrt, enter the following content into the editor, and then click confirm.

The CatWrt-rootfs used here is the latest v24.9 version and has the tun module loading enabled.

version: '3.8'

services:
  catwrt:
    image: miaoer/catwrt:latest
    container_name: CatWrt
    restart: always
    privileged: true
    volumes:
      - /lib/modules:/lib/modules:ro
      - /dev:/dev
    command: /sbin/init

    cap_add:
      - NET_ADMIN
      - SYS_MODULE
    devices:
      - /dev/net/tun
    networks:
      - maclan

networks:
  maclan:
    external: true

The author forgot to check if the tun module was actively loaded; if it is not loaded, please run sudo modprobe tun and check with lsmod | grep tun if it has been successfully loaded.

root@Debian:~# sudo modprobe tun
root@Debian:~# lsmod | grep tun
tun                    61440  4
root@Debian:~#

Set Up CatWrt#

First, connect to the CatWrt terminal on Debian.

docker exec -it CatWrt /bin/bash

Enter CatWrt and choose to use Cattools to help us modify the IP address; of course, you can also use the network wizard to fill in your information correctly.

cattools

1

Note: Here CatWrt is not connected to the specified gateway, so it will retry multiple times to obtain the latest version of Cattools; please do not interrupt!

root@Debian:~# docker exec -it CatWrt /bin/bash
bash-5.2# cattools
Please wait for the script to be updated.
Attempt 1 failed. Retrying...
Attempt 2 failed. Retrying...
Attempt 3 failed. Retrying...
Unable to download the latest version, continue to use the current offline version.


----------------------------------------------------------
                         CatTools
           https://github.com/miaoermua/cattools
----------------------------------------------------------
1. SetIP                                  -  Set IP
2. Network_Wizard                         -  Network Wizard
3. Apply_repo                             -  Software Source Configuration
4. Diagnostics                            -  Network Diagnostics
5. Debug                                  -  Capture Logs
6. Catwrt_update                          -  Check for Updates
7. Sysupgrade                             -  System Update
8. Restore                                -  Restore Packages
9. Utilities(more)                        -  Utilities
0. Exit                                   -  Exit
----------------------------------------------------------
Please enter a number and press Enter: 1
Please enter the IP Addr and press Enter /// 请输入 IP (默认为 192.168.1.4): 10.0.0.233
Default IP has been set to 10.0.0.233

If you want to install plugins, you can also use the Software Source Configuration in Cattools.

Conclusion#

CatWrt-rootfs still has many plugins or software that require special settings or cannot be used. This is my first time working with this rootfs, and I haven't used it yet. If there are any questions, feel free to discuss in the comments.

Reference: Cnblogs: Installing OpenWRT via Docker on a Dual-NIC Host to Achieve Soft Routing Functionality

This article is synchronized and updated to xLog by Mix Space. The original link is https://www.miaoer.net/posts/network/1panel-deploy-catwrt-rootfs

Footnotes#

  1. https://www.miaoer.net/posts/blog/cattools ↩
